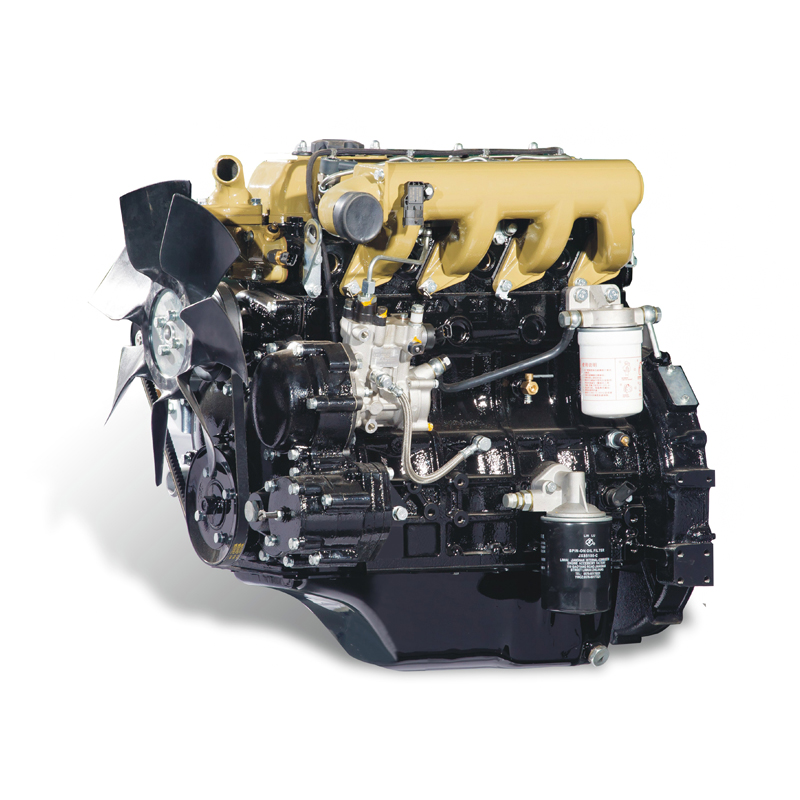

4D32

Availability:
sharethis sharing button

download

Model
4D32T31/502
Type
In-line, water cooled, 4-stroke, direct injection, ring-like platform combustion chamber
AspirationNatural aspiration
No. of cylinders-bore-stroke (mm)4-98×105
Total displacement (L)3.17
Firing order1-3-4-2
Compression ratio18.5:1
Rated power/speed ( kW -r/min)36.8-2200
Max. torque (N·m)≥200
Max. torque speed(r/min)1600~180
Rated point Fuel consumption≤235
Max. torque Fuel consumption≤220
Max.smoke at full load (RB)≤2.5
Free Acceleration Smoke (RB)
≤3.0
EmissionGB 20891-2014 Non road stage Ⅲ
Min. steady idle speed (r/min)750±30
Direction of crank rotation viewed
from flywheel end
counterclockwise
Noise dB(A)≤111
Cooling systemclosed cycle, forced water cooling
Lubricating systempressured and splashed
Starting systemElectric motor
Net weight (kg)330
Dimension length*width*height (mm)
797×726×729
Application
Tractor
