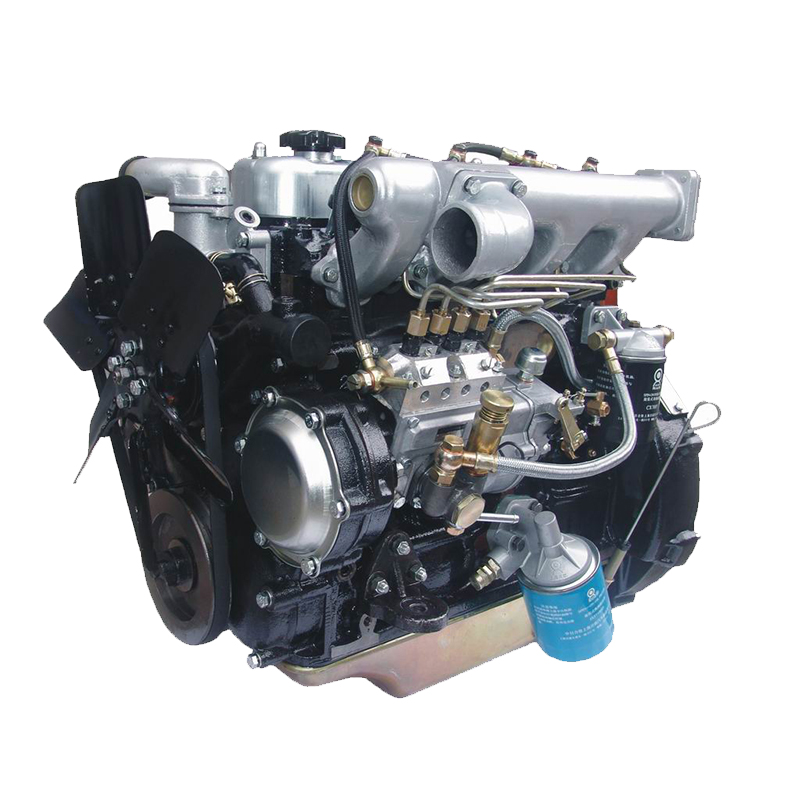

Model | NC485BPG |
Number of cylinder-Bore x Stroke | 4-85x 100 |
Type | Vertical、Water -cooled、4-cycle diesel |
Type of combustion chamber | DI |
Total displacement (L) | 2.27 |
Compression ratio | 18：1 |
Rated output/Rated speed kW/r/min | 30/2600 |
N . m/r/min Max specific fuel consumption of full load | ≥131/1700~ 1900 |
Min specific fuel consumption of full load (g/kWh) | ≤230 |
Emission Regulation | State II |
Net weight (kg) | ≤220 |
Length x Width x Height (mm) | 695x551x635 |
Application | 1~ 1.5t construction machine |
Model | NC485BPG |
Number of cylinder-Bore x Stroke | 4-85x 100 |
Type | Vertical、Water -cooled、4-cycle diesel |
Type of combustion chamber | DI |
Total displacement (L) | 2.27 |
Compression ratio | 18：1 |
Rated output/Rated speed kW/r/min | 30/2600 |
N . m/r/min Max specific fuel consumption of full load | ≥131/1700~ 1900 |
Min specific fuel consumption of full load (g/kWh) | ≤230 |
Emission Regulation | State II |
Net weight (kg) | ≤220 |
Length x Width x Height (mm) | 695x551x635 |
Application | 1~ 1.5t construction machine |
