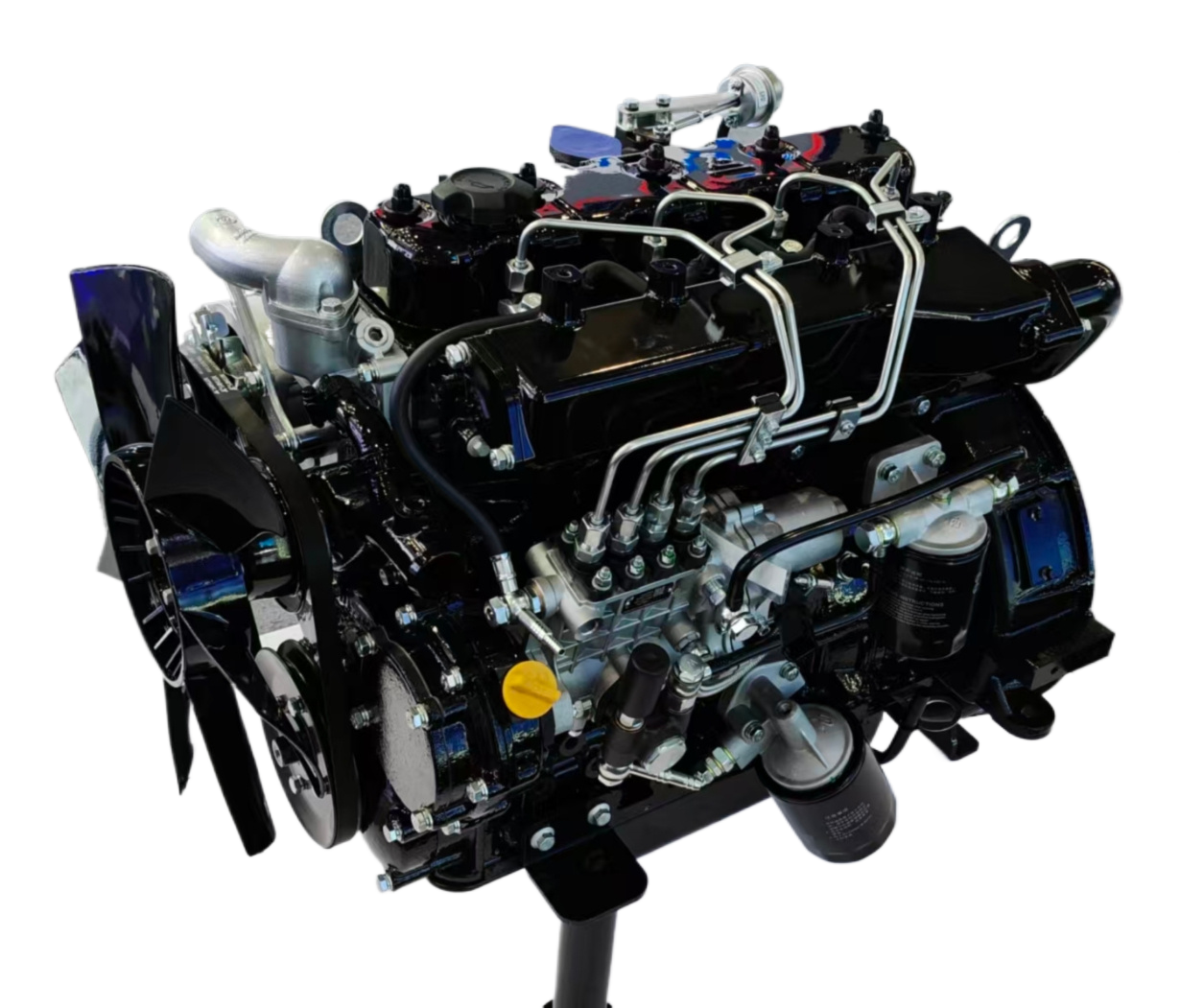

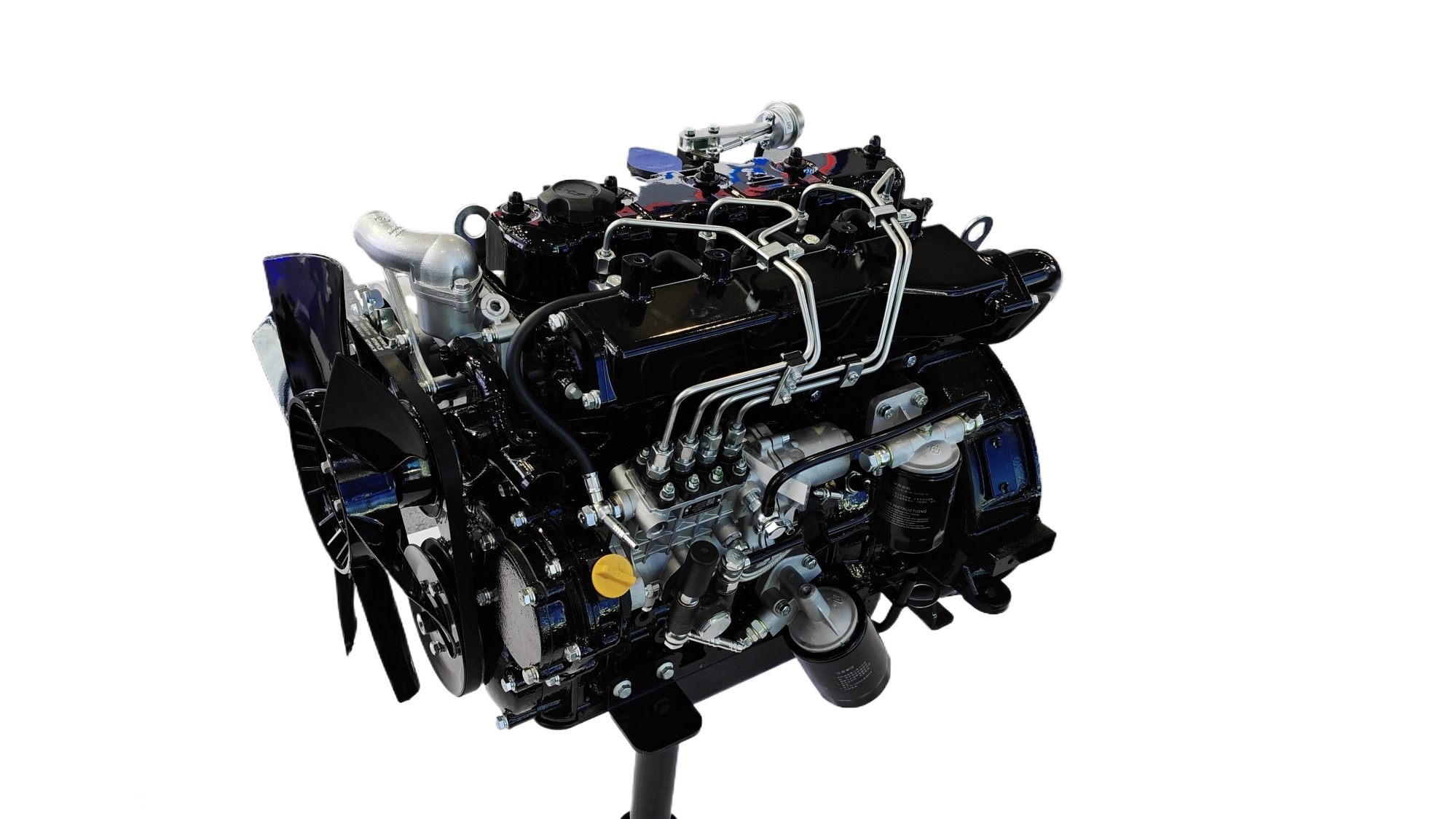

4N28ZD
XINCHAI
| Diesel Engine Datasheet | ||||||||
| S/N | Model | 4N28ZD | Remark | |||||
| 1 | Type | Turbocharged 4-stroke inline water-cooled diesel engine | ||||||
| 2 | Number of cylinders -Bore× Stroke | mm | 4-95×100 | |||||
| 3 | Injection method | Direct Injection | ||||||
| 4 | Compression ratio | 18:1 | ||||||
| 5 | Displacement | liter | 2.8 | |||||
| 6 | Standby power | kW@rpm | 44/1500 | |||||
| 7 | Rated power | kW@rpm | 40/1500 | |||||
| 8 | Fuel consumption | g/kW-h | 235 | Rated output conditions | ||||
| 9 | Rated output conditions | 25℃,750mmHg,30% | ||||||
| 10 | Idle speed | Maximum | rpm | 1575 | ±25 | |||
| Minimum | rpm | 1500 | ±25 | |||||
| 11 | Speed regulation | Governor type | Electrical governor | |||||
| Speed Regulation (transient) | % | ≤8 | Load 100% →0% | |||||
| Speed Regulation (steady) | % | ≤4 | ||||||
| Recovery time | sec | ≤6 | ||||||
| Stability | rpm | ≤30 | ||||||
| 12 | Allowable tilt angle | Longitudinal | deg | 30(25) | Short time (Long time) | |||
| Lateral | deg | 30(25) | ||||||
| 13 | Firing order | 1-3-4-2 | Start from Flywheel End | |||||
| 14 | Rotation direction | Counterclockwise(Viewed from the flywheel end) | ||||||
| 15 | Engine weight | kg | 265 | |||||
| 16 | Fuel injection timing | deg | 12 | FITb.T.D.C | ||||
| 17 | Fuel system | Fuel type | Diesel | |||||
| Fuel injection pump | Mechanical inline pump | |||||||
| Fuel injector | Hole-type | |||||||
| Fuel filter | Paper filter cartridge | |||||||
| 18 | Lubrication system | Type | Forced lubrication | |||||
| Oil grade | APICF-4 ,SAE 15W40 | Recommended | ||||||
| Oil pump | Rotary oil pump | |||||||
| Oil filter | Paper filter cartridge | |||||||
| Oil capacity | liter | 7 | Maximum | |||||
| liter | 4.5 | Effective | ||||||
| Oil pressure | kgf/cm2 | 2.4 | Rated speed | |||||
| kgf/cm2 | 0 | Low idle speed | ||||||
| 19 | Cooling system | Radiator | Optional | |||||
| Pressure cap | kgf/cm2 | 0.7-0.9 | ||||||
| Heat dissipation | Kw | 32(Recommended area: 16㎡) | ||||||
| Coolant capacity | liter | 4.6 | Engine only | |||||
| 20 | Air filter | Optional | ||||||
| 21 | Breather System | Open type | ||||||
| 22 | Starting System | Starter | 12V-3.8 kW | |||||
| Battery | 100Ah, CCA325 | |||||||
| Cold start device | Optional | |||||||
| 23 | Alternator | 12V 70A | ||||||
| 24 | Engine color | Original Color | ||||||
| 25 | Emission | China stage II | ||||||
