PRODUCTS CENTER
You are here:
Home
»
Products
»
GENSETS ENGINES
»
4D35ZD
PRODUCT CATEGORY
NEW PRODUCTS
FORKLIFT ENGIENS
AGRICULTURAL ENGINES
GENSETS ENGINES
CONSTRUCTION MACHINERY
PRODUCTS DETAILS
9
loading

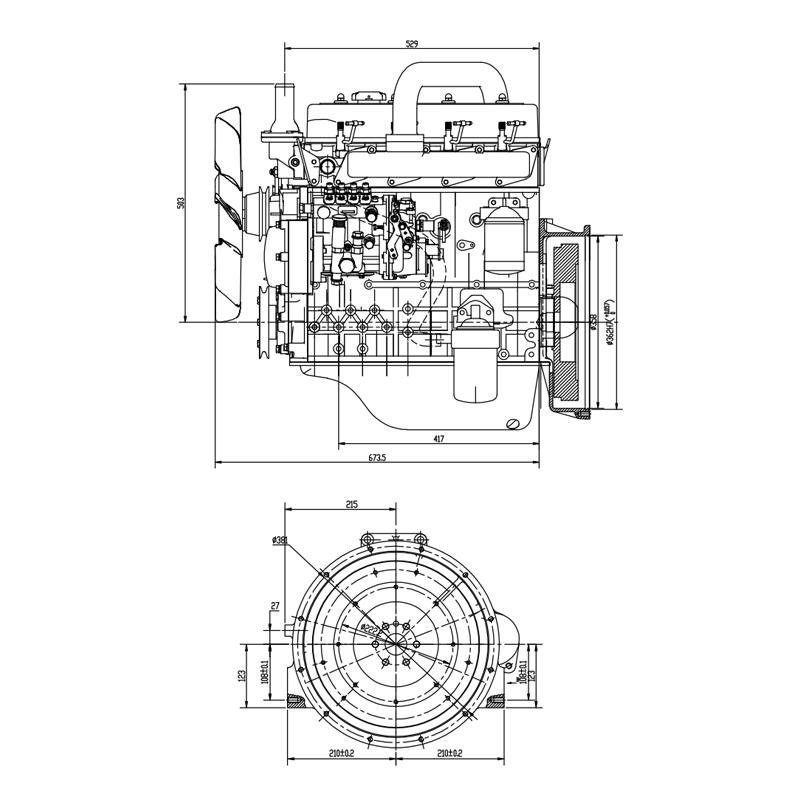

4D35ZD
The products are well known all over the country and exported to many foreign countries such as Southeast Asia, American and European countries, etc.
Availability:
Inquire
DOWNLOAD
MAIN TECHNICAL PARAMETERS
TECHNICAL PARAMETERS
Type
4D35ZD
Aspiration
Supercharge
Displacement(L)
3.5
Bore(mm)xStroke(mm)
98X115
Power(kW)
49
Fuel Injection System
BQ Electronical Governor Inline Pump
Fuel consume rate (g/kW-h)
212
Noise dB(A)
≤112
Emission level
CN stage II
Weight (kg)
285
Dimensions (mm)
750x600x765
Engine
Type
In-line, water cooled, 4-stroke, direct injection
Speed [min-1]
1500
Exhaust emission standard
CN stage II
General
Aspiration
Supercharge
No. of cylinders
4
Compression ratio
18.5
Rotation (looking at flywheel)
Counter clockwise
No. of teeth on flywheel ring gear
120
Governing standards
Speed droop (static) mech. gov.[%]
-
Speed droop (static) electr. gov. (EMR/GAC)[%]
5
Lubrication system
Oil specification
CF
Oil consumption (as % of fuel consumption)
0.5
Oil pan capacity[l]
6.5
Output
Fan reduction [kW]
2.5
Net flywheel [kW]
45
Electrical output
50
Fuel System
Fuel consumption
25% load[l/h]
281
50% load [l/h]
244
75% load [l/h]
230
100% load [l/h]
225
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]
95
Coolant capacity (engine) [l]
6
Air to boil (max. permissible cool. air temp. at fan) [°C]
45
Cooling air flow [m3/h]
252
Air pressure loss [bar]
0.04
Electrical System
Voltage[V]
12
Starter [kW]
3.8
Alternator output [A]
25(optional)
Type
4D35ZD
Aspiration
Supercharge
Displacement(L)
3.5
Bore(mm)xStroke(mm)
98X115
Power(kW)
49
Fuel Injection System
BQ Electronical Governor Inline Pump
Fuel consume rate (g/kW-h)
212
Noise dB(A)
≤112
Emission level
CN stage II
Weight (kg)
285
Dimensions (mm)
750x600x765
Engine
Type
In-line, water cooled, 4-stroke, direct injection
Speed [min-1]
1500
Exhaust emission standard
CN stage II
General
Aspiration
Supercharge
No. of cylinders
4
Compression ratio
18.5
Rotation (looking at flywheel)
Counter clockwise
No. of teeth on flywheel ring gear
120
Governing standards
Speed droop (static) mech. gov.[%]
-
Speed droop (static) electr. gov. (EMR/GAC)[%]
5
Lubrication system
Oil specification
CF
Oil consumption (as % of fuel consumption)
0.5
Oil pan capacity[l]
6.5
Output
Fan reduction [kW]
2.5
Net flywheel [kW]
45
Electrical output
50
Fuel System
Fuel consumption
25% load[l/h]
281
50% load [l/h]
244
75% load [l/h]
230
100% load [l/h]
225
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]
95
Coolant capacity (engine) [l]
6
Air to boil (max. permissible cool. air temp. at fan) [°C]
45
Cooling air flow [m3/h]
252
Air pressure loss [bar]
0.04
Electrical System
Voltage[V]
12
Starter [kW]
3.8
Alternator output [A]
25(optional)
