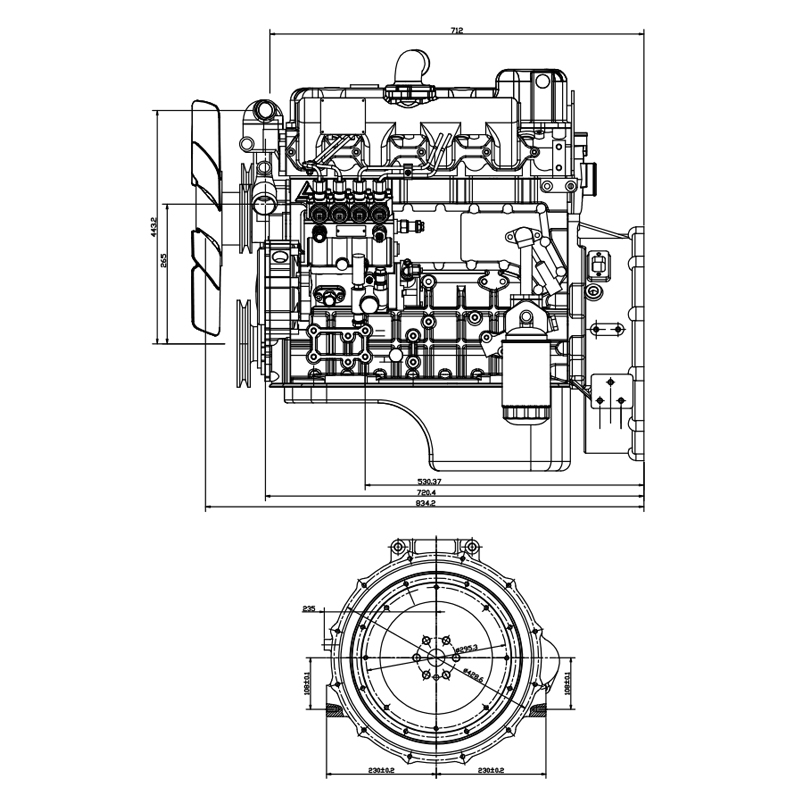

4K41LD
The products are well known all over the country and exported to many foreign countries such as Southeast Asia, American and European countries, etc.
Availability:
Inquire
DOWNLOAD
MAIN TECHNICAL PARAMETERS
TECHNICAL PARAMETERS
Type
4K41LD
Aspiration
TCI
Displacement(L)
4.1
Bore(mm)xStroke(mm)
105x118
Power(kW)/Speed(r/min)
64
Torque(N•m)/Speed(r/min)
407
Fuel Injection System
BQ Electronical Governor Inline Pump
Fuel consume rate (g/kW-h)
240
Noise dB(A)
≤115
Emission level
CN stage II
Weight (kg)
370
Dimensions (mm)
815x661x770
Engine
Type
In-line, water cooled, 4-stroke, direct injection ring-like platform combustion
Speed [min-1]
1500
Exhaust emission standard
CN stage II
General
Aspiration
TCI
No. of cylinders
4
Compression ratio
18
Rotation (looking at flywheel)
Counter clockwise
No. of teeth on flywheel ring gear
120
Governing standards
Speed droop (static) mech. gov.[%]
-
Speed droop (static) electr. gov. (EMR/GAC)[%]
3%
Lubrication system
Oil specification
CF
Oil consumption (as % of fuel consumption)
0.5
Oil pan capacity[l]
6.5
Output
Fan reduction [kW]
2
Net flywheel [kW]
59 kW
Electrical output
53 kW
Fuel System
Fuel consumption
25% load[l/h]
5.1
50% load [l/h]
8.4
75% load [l/h]
12.3
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]
95
Temperature at CAC outlet at standard conditions [°C]
85
Coolant capacity (engine) [l]
8.54
Coolant capacity (incl. cooling unit) [l]
Air to boil (max. permissible cool. air temp. at fan) [°C]
45
Cooling air flow [m3/h]
340
Air pressure loss [bar]
0.013
Electrical System
Voltage[V]
12
Starter [kW]
3.8
Alternator output [A]
35
Type
4K41LD
Aspiration
TCI
Displacement(L)
4.1
Bore(mm)xStroke(mm)
105x118
Power(kW)/Speed(r/min)
64
Torque(N•m)/Speed(r/min)
407
Fuel Injection System
BQ Electronical Governor Inline Pump
Fuel consume rate (g/kW-h)
240
Noise dB(A)
≤115
Emission level
CN stage II
Weight (kg)
370
Dimensions (mm)
815x661x770
Engine
Type
In-line, water cooled, 4-stroke, direct injection ring-like platform combustion
Speed [min-1]
1500
Exhaust emission standard
CN stage II
General
Aspiration
TCI
No. of cylinders
4
Compression ratio
18
Rotation (looking at flywheel)
Counter clockwise
No. of teeth on flywheel ring gear
120
Governing standards
Speed droop (static) mech. gov.[%]
-
Speed droop (static) electr. gov. (EMR/GAC)[%]
3%
Lubrication system
Oil specification
CF
Oil consumption (as % of fuel consumption)
0.5
Oil pan capacity[l]
6.5
Output
Fan reduction [kW]
2
Net flywheel [kW]
59 kW
Electrical output
53 kW
Fuel System
Fuel consumption
25% load[l/h]
5.1
50% load [l/h]
8.4
75% load [l/h]
12.3
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]
95
Temperature at CAC outlet at standard conditions [°C]
85
Coolant capacity (engine) [l]
8.54
Coolant capacity (incl. cooling unit) [l]
Air to boil (max. permissible cool. air temp. at fan) [°C]
45
Cooling air flow [m3/h]
340
Air pressure loss [bar]
0.013
Electrical System
Voltage[V]
12
Starter [kW]
3.8
Alternator output [A]
35
