A495BD

The products are well known all over the country and exported to many foreign countries such as Southeast Asia, American and European countries, etc.
Availability:
sharethis sharing button

download




TypeA495BD
AspirationNaturally aspirated
Displacement(L)3
Bore(mm)xStroke(mm)95x105
Power(kW)/Speed(r/min)27
Torque(N•m)/Speed(r/min)172
Fuel Injection SystemBQ Electronical Governor Inline Pump
Fuel consume rate (g/kW-h)240
Noise dB(A)≤112
Emission levelCN stage II
Weight (kg)265

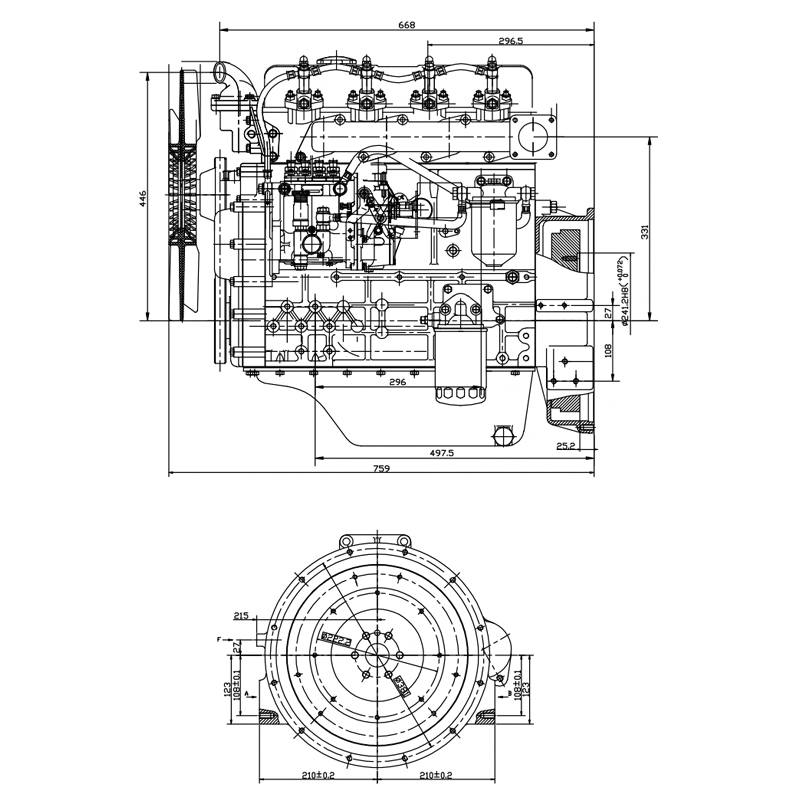

Dimensions (mm)750x565x700
Engine
TypeIn-line, water cooled, 4-stroke, direct injection ring-like platform combustion
Speed [min-1]1500
Exhaust emission standardCN stage II
General
AspirationNaturally aspirated
No. of cylinders4
Compression ratio18.5
Rotation (looking at flywheel)Counter clockwise
No. of teeth on flywheel ring gear120


Governing standards
Speed droop (static) mech. gov.[%] -
Speed droop (static) electr. gov. (EMR/GAC)[%] 5


Lubrication system
Oil specificationCF
Oil consumption (as % of fuel consumption)1.2
Oil pan capacity[l]6.5
Output
Fan reduction [kW]2
Net flywheel [kW]23.5
Electrical output21.1
Fuel System
Fuel consumption
25% load[l/h]2.5
50% load [l/h]4.3
75% load [l/h]6.1
100% load [l/h]7.8
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]95
Temperature at CAC outlet at standard conditions [°C]85
Coolant capacity (engine) [l]5.73
Coolant capacity (incl. cooling unit) [l]
Air to boil (max. permissible cool. air temp. at fan) [°C]45
Cooling air flow [m3/h]115
Air pressure loss [bar]-
Electrical System
Voltage[V]12
Starter [kW]3
Alternator output [A]25


A495BD
