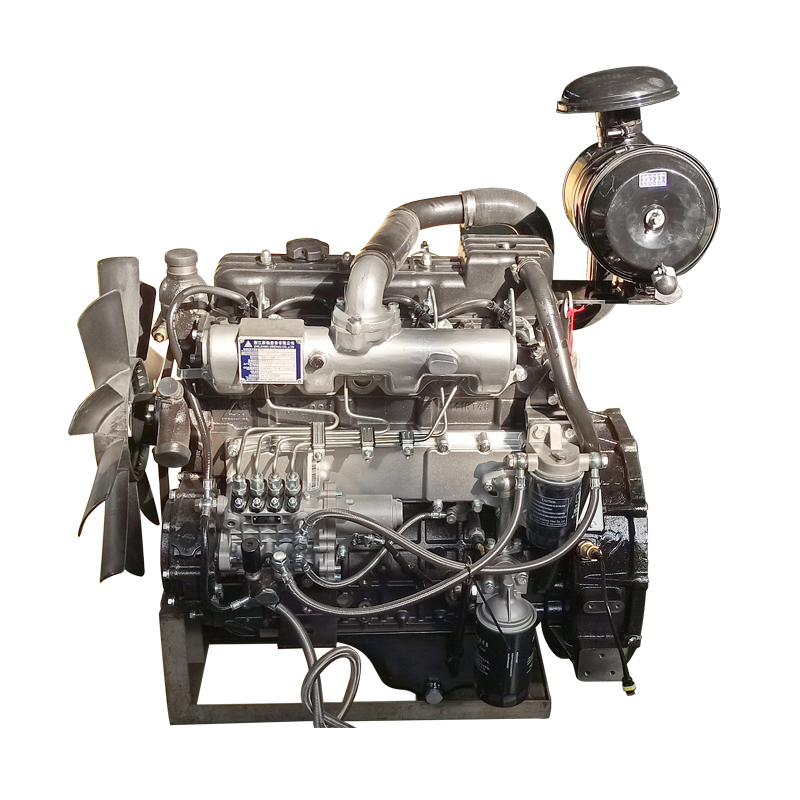

4K41ZD

Availability:

download




The products are well known all over the country and exported to many foreign countries such as Southeast Asia, American and European countries, etc.

Type4K41ZD
AspirationSupercharge
Displacement(L)4.1
Bore(mm)xStroke(mm)105x118
Power(kW)/Speed(r/min)59
Torque(N•m)/Speed(r/min)376
Fuel Injection SystemElectronic unit pump
Fuel consume rate (g/kW-h)240
Noise dB(A)≤114
Emission levelCN stage II
Weight (kg)360

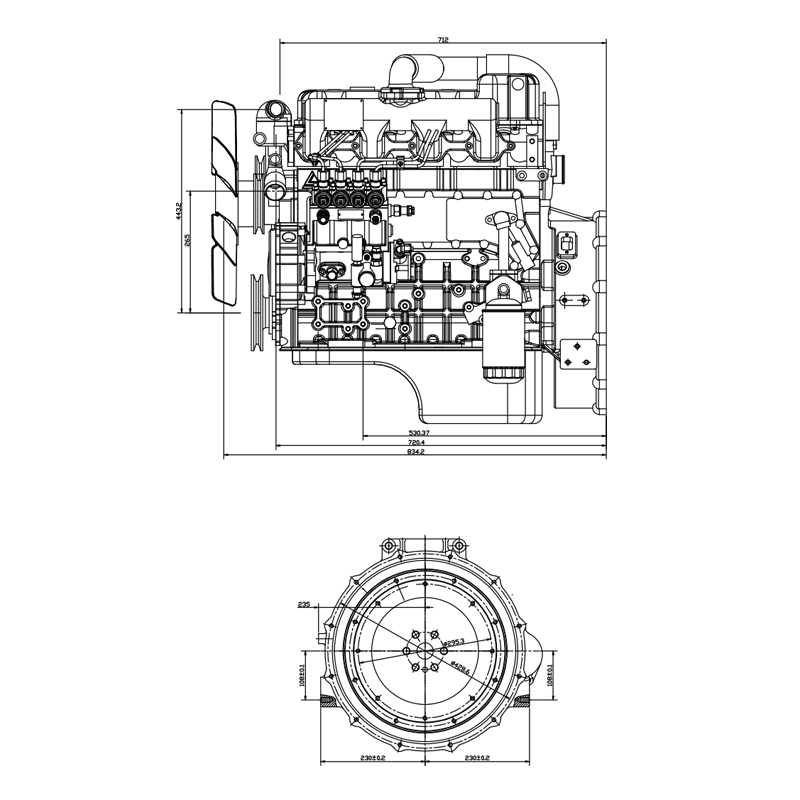

Dimensions (mm)815x645x820
Engine
TypeIn-line, water cooled, 4-stroke, direct injection ring-like platform combustion
Speed [min-1]1500
Exhaust emission standardCN stage II
General
AspirationSupercharge
No. of cylinders4
Compression ratio18
Rotation (looking at flywheel)Counter clockwise
No. of teeth on flywheel ring gear120


Governing standards
Speed droop (static) mech. gov.[%] -
Speed droop (static) electr. gov. (EMR/GAC)[%] 3%


Lubrication system
Oil specificationCF
Oil consumption (as % of fuel consumption)0.5
Oil pan capacity[l]6.5
Output
Fan reduction [kW]2.5
Net flywheel [kW]54
Electrical output48.6
Fuel System
Fuel consumption
25% load[l/h]4.9
50% load [l/h]8.3
75% load [l/h]12
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]95
Min. pressure before coolant pump [bar]
Temperature at CAC outlet at standard conditions [°C]85
Coolant capacity (engine) [l]8.54
Coolant capacity (incl. cooling unit) [l]
Air to boil (max. permissible cool. air temp. at fan) [°C]45
Cooling air flow [m3/h]294
Air pressure loss [bar]-
Electrical System
Voltage[V]12
Starter [kW]3.8
Alternator output [A]35


4K41ZD
