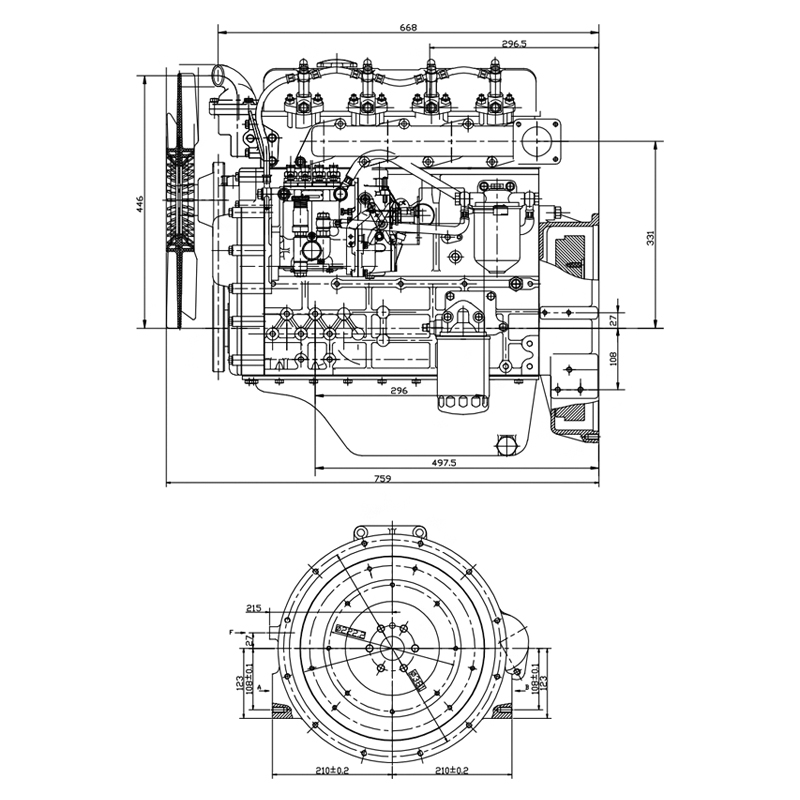

A498BD
The products are well known all over the country and exported to many foreign countries such as Southeast Asia, American and European countries, etc.
Availability:
Inquire
DOWNLOAD
MAIN TECHNICAL PARAMETERS
TECHNICAL PARAMETERS
Type
A498BD
Aspiration
Naturally aspirated
Displacement(L)
3.2
Bore(mm)xStroke(mm)
98x105
Power(kW)/Speed(r/min)
32
Torque(N•m)/Speed(r/min)
204
Fuel Injection System
BQ Electronical Governor Inline Pump
Fuel consume rate (g/kW-h)
240
Noise dB(A)
≤112
Emission level
CN stage II
Weight (kg)
265
Dimensions (mm)
750x565x700
Engine
Type
In-line, water cooled, 4-stroke, direct injection ring-like platform combustion
Speed [min-1]
1500
Exhaust emission standard
CN stage II
General
Aspiration
Naturally aspirated
No. of cylinders
4
Compression ratio
18.5
Rotation (looking at flywheel)
Counter clockwise
No. of teeth on flywheel ring gear
120
Governing standards
Speed droop (static) mech. gov.[%]
-
Speed droop (static) electr. gov. (EMR/GAC)[%]
5
Lubrication system
Oil specification
CF
Oil consumption (as % of fuel consumption)
1.2
Oil pan capacity[l]
6.5
Output
Fan reduction [kW]
2
Net flywheel [kW]
28
Electrical output
25.2
Fuel System
Fuel consumption
25% load[l/h]
2.8
50% load [l/h]
5
75% load [l/h]
7.1
100% load [l/h]
9.1
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]
95
Temperature at CAC outlet at standard conditions [°C]
85
Coolant capacity (engine) [l]
5.73
Coolant capacity (incl. cooling unit) [l]
Air to boil (max. permissible cool. air temp. at fan) [°C]
45
Cooling air flow [m3/h]
122
Air pressure loss [bar]
-
Electrical System
Voltage[V]
12
Starter [kW]
3
Alternator output [A]
25
