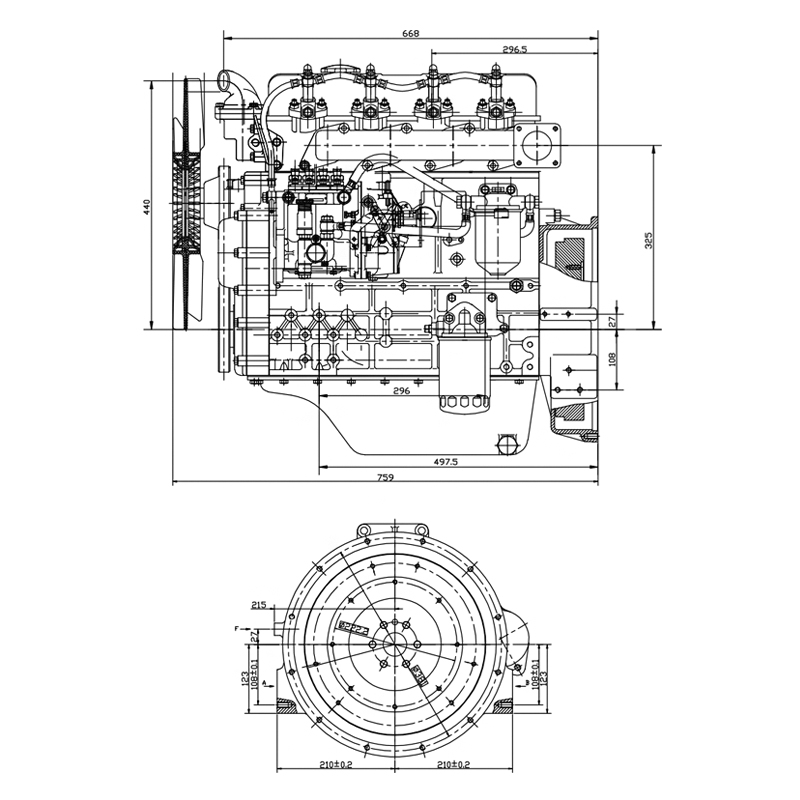

C490BD

Availability:

download




TypeC490BD
AspirationNaturally aspirated
Displacement(L)2.7
Bore(mm)xStroke(mm)90x105
Power(kW)/Speed(r/min)22
Torque(N•m)/Speed(r/min)240
Fuel Injection SystemBQ Electronical Governor Inline Pump
Fuel consume rate (g/kW-h)240
Noise dB(A)≤112
Emission levelCN stage II
Weight (kg)260
Dimensions (mm)750x565x696


Engine
TypeIn-line, water cooled, 4-stroke, direct injection ring-like platform combustion
Speed [min-1]1500
Exhaust emission standardCN stage II


General
AspirationNaturally aspirated
No. of cylinders4
Compression ratio18.5
Rotation (looking at flywheel) Counter clockwise
No. of teeth on flywheel ring gear120
Governing standards
Speed droop (static) mech. gov.[%] -
Speed droop (static) electr. gov. (EMR/GAC)[%] 5
Lubrication system
Oil specificationCF
Oil consumption (as % of fuel consumption)1.2
Oil pan capacity[l]6.5
Output
Fan reduction [kW]2
Net flywheel [kW]19
Electrical output17.1
Fuel System
Fuel consumption
25% load[l/h]2
50% load [l/h]3.6
75% load [l/h]5
100% load [l/h]6.3
Cooling System
General engine cooling data
Max. perm. coolant outlet temperature [°C]95
Temperature at CAC outlet at standard conditions [°C]85
Coolant capacity (engine) [l]5.73
Coolant capacity (incl. cooling unit) [l]
Air to boil (max. permissible cool. air temp. at fan) [°C]45
Cooling air flow [m3/h]103
Air pressure loss [bar]-
Electrical System
Voltage[V]12
Starter [kW]3
Alternator output [A]25


C490BD
